Solid fuel boilers VOT, based on an uncooled, thermally insulated mechanized furnace with a movable inclined grate, can operate effectively with fuel with up to 55% humidity.

A perfect control system allows you to control the operation of the boiler with high degree of reliability and ensure the accuracy of the specified parameters.

The design of boilers with a complex design of a non-cooled furnace and a vertical direct-flow heat-exchanger ensures complete and high-quality combustion of fuel, and maximum use of thermal energy from the fuel combustion process.

The range of coolant operating temperature is from 120°С to 290°С ensures the use of these boilers in various areas of industrial enterprises.

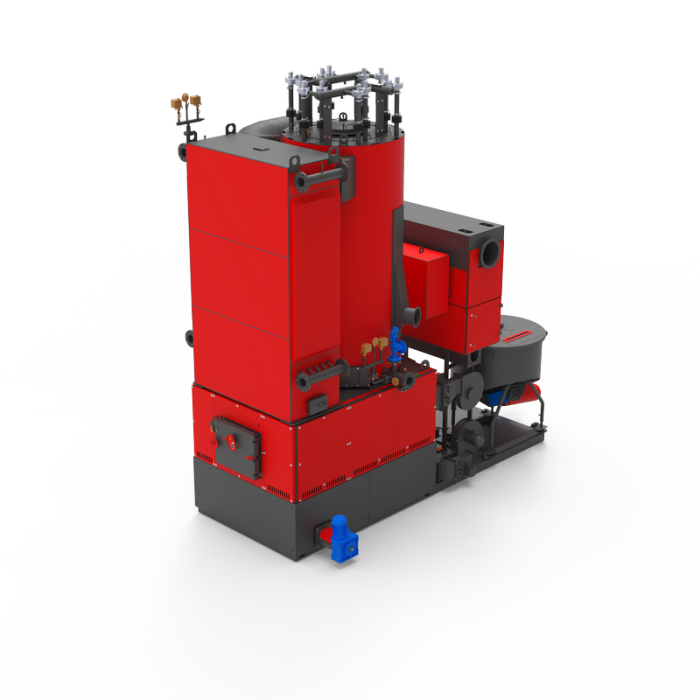

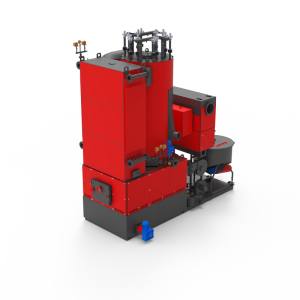

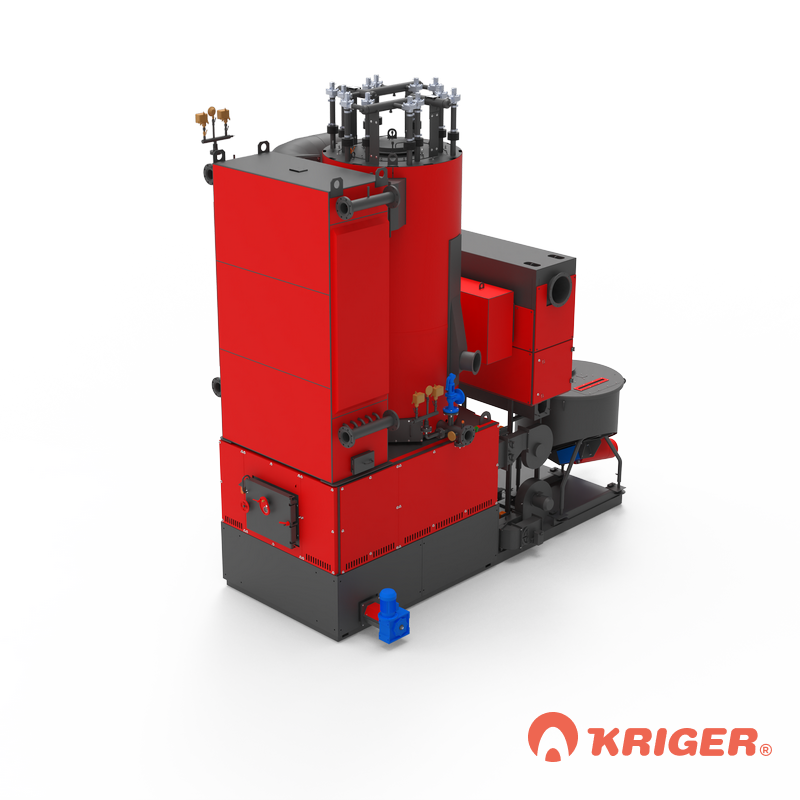

Boilers of the KVM-ХХ,Х series with heating capacity of 0,8-1,5 MW.

The distinctive feature and advantage of boilers in this series is their compactness and versatility.

All main elements of the boiler (furnace with a heat-exchanger, fuel supply system, an economizer and a multicyclone) are mounted on a common platform.

The boilers have ash and slag removing automated devices, for cleaning of heat-exchanger pipes and distributing air for the combustion process, which are regulated by the boiler operation control system, depending on its operating mode.

Delivery set of boiler equipment

1. Boiler units consisting of a lined furnace with an inclined grate, a main heat exchanger, an economizer heat exchanger, connecting gas ducts and service platforms and ladders;
2. A fuel supply device with a boiler bunker equipped with an automated level maintenance system, a sluice gate and fire extinguishing system;
3. Multicyclone filter with hermetic sluice dispenser;
4. Circulation and recirculation smoke extractors with frequency control;
5. Automated ash removal system from the furnace, heat exchanger, multicyclone and economizer into sealed mobile containers;
6. A set of frequency-controlled blowing fans;
7. System of automatic pneumatic cleaning of heat exchanger pipes;
8. A set of shut-off and regulating fittings within the boiler;
9. The system of automatic control and management of the operation of the installation;
10. A set of pneumatic and hydraulic pipes, hoses;
11. A set of installation cables and trays for laying the power supply network and controlling the boiler installation;
12. Documentation (boiler passport, operating instructions, equipment list, service log).
